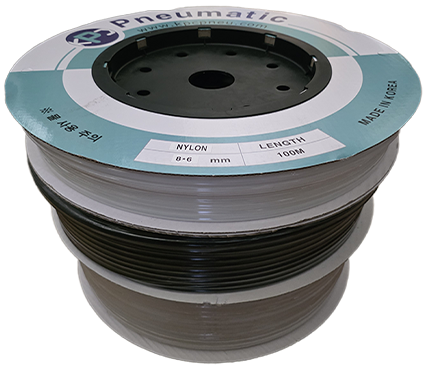

Nylon Tube
Applications and Features
Applications
- Factory machinery and equipment, industrial piping applications, and various industrial machines
Features
- Lightweight and flexible, improving efficiency and productivity in piping work
- Excellent resistance to pressure, vibration, corrosion, heat, chemicals, and oil
- Low water absorption with minimal degradation of physical properties and dimensional changes
- Excellent weather resistance, bending resistance, and fatigue resistance
- Working temperature range (-40°C to 80°C)
- Factory machinery and equipment, industrial piping applications, and various industrial machines
Features
- Lightweight and flexible, improving efficiency and productivity in piping work
- Excellent resistance to pressure, vibration, corrosion, heat, chemicals, and oil
- Low water absorption with minimal degradation of physical properties and dimensional changes
- Excellent weather resistance, bending resistance, and fatigue resistance
- Working temperature range (-40°C to 80°C)
| Model | Size | O/D | I/D |
Bust Pressure (Kg/㎠at20ºC) |
Curvature Radius mm |
Weight (g/m) |
Colors |
| N-0402 | 4X2 | 4 | 2 | 150 | 10 | 11 |
White Black |
| N-0425 | 4X2.5 | 4 | 2.5 | 60 | 20 | 9 | |
| N-0604 | 6X4 | 6 | 4 | 60 | 20 | 17 | |
| N-0806 | 8X6 | 8 | 6 | 60 | 20 | 25 | |
| N-1008 | 10X8 | 10 | 8 | 50 | 35 | 29 | |
| N-1209 | 12X9 | 12 | 9 | 60 | 45 | 51 | |
| N-1/2 | 1/2 | 12.7 | 9.56 | 35 | 45 | 65 | |
| N-3/8 | 3/8 | 9.53 | 6.99 | 35 | 29 | 35 | |
| N-1/4 | 1/4 | 6.35 | 4.57 | 35 | 23 | 16 |
