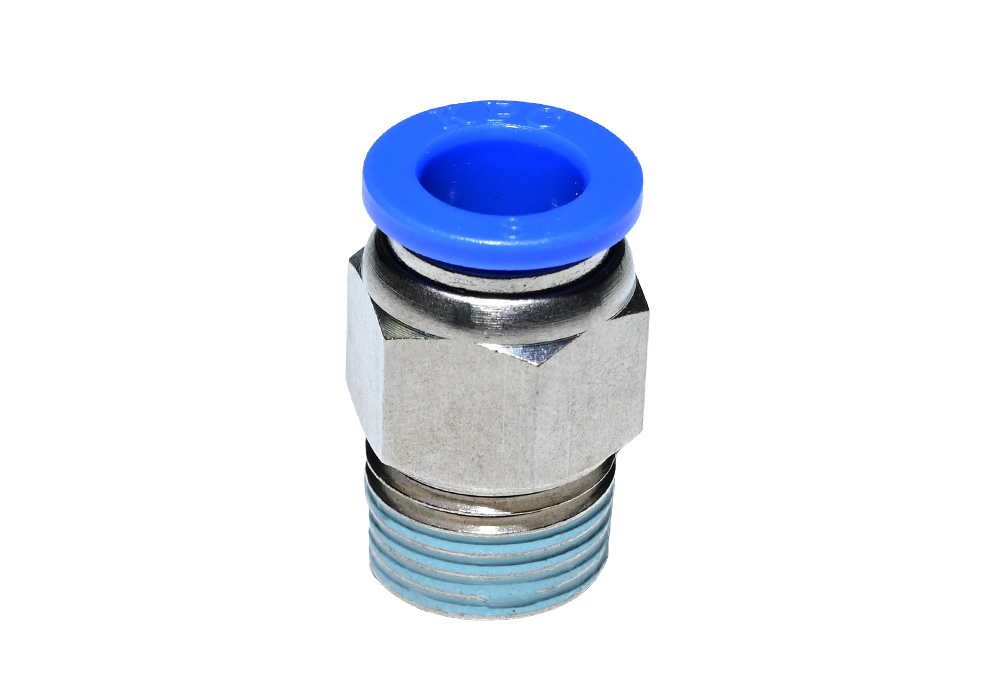

PC
Applications and Features
- Fittings and tubes can be easily connected and disconnected in a single motion.
- The tube is easily connected by pushing it into the sleeve, and can be removed by pressing the sleeve with a finger and pulling out the tube.
- No tools are required for connecting or disconnecting the tube.
- The tube is easily connected by pushing it into the sleeve, and can be removed by pressing the sleeve with a finger and pulling out the tube.
- No tools are required for connecting or disconnecting the tube.

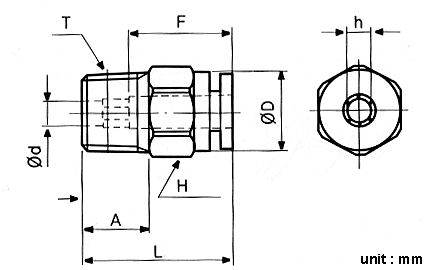

PC Model

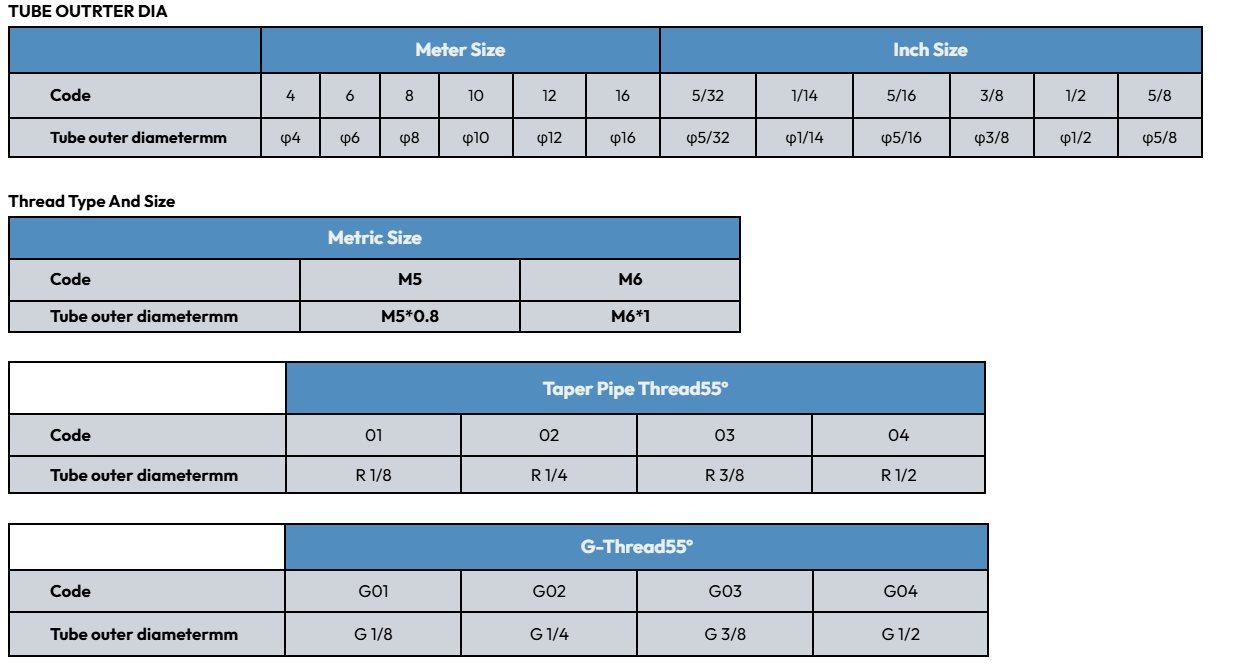

| MODEL(φD-R) | |||||

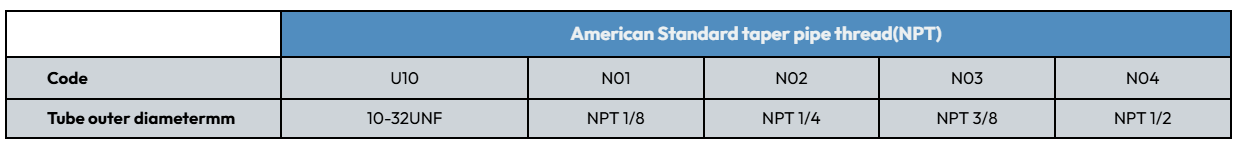

| Tube(Metric) - Thread(PT) | Tube(Inch) - Thread(NPT) | ||||
| PC 04-M5 | PC 06-03 | PC 10-04 | PC 5/32-UNF | PC 5/16-N01 | PC 1/2-N02 |
| PC 04-M6 | PC 06-04 | PC 12-01 | PC 5/32-N01 | PC 5/16-N02 | PC 1/2-N03 |
| PC 04-01 | PC 08-01 | PC 12-02 | PC 5/32-N02 | PC 5/16-N03 | PC 1/2-N04 |
| PC 04-02 | PC 08-02 | PC 12-03 | PC 5/32-N03 | PC 5/16-N04 | PC 5/8-N02 |
| PC 04-03 | PC 08-03 | PC 12-04 | PC 5/32-N04 | PC 3/8-N01 | PC 5/8-N03 |
| PC 06-M5 | PC 08-04 | PC 16-02 | PC 1/4-N01 | PC 3/8-N02 | PC 5/8-N04 |
| PC 06-M6 | PC 10-01 | PC 16-03 | PC 1/4-N02 | PC 3/8-N03 | |
| PC 06-01 | PC 10-02 | PC 16-04 | PC 1/4-N03 | PC 3/8-N04 | |
| PC 06-02 | PC 10-03 | PC 1/4-N04 | PC 1/2-N01 | ||
