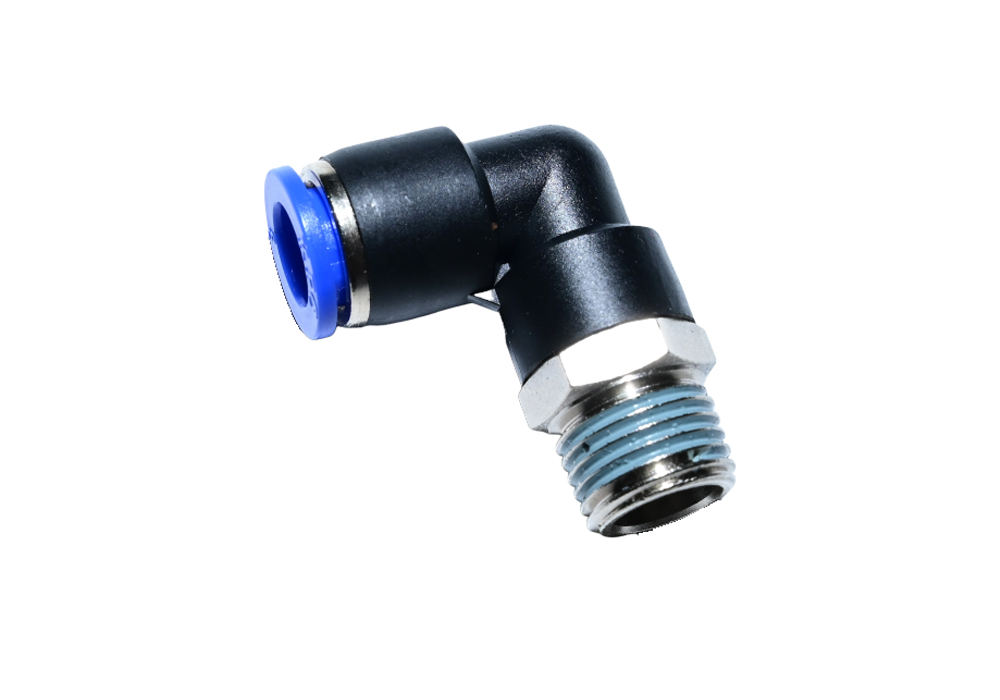

PL
Applications and Features
- Fittings and tubes can be easily connected and disconnected in a single motion.
- The tube is easily connected by pushing it into the sleeve, and can be removed by pressing the
sleeve with a finger and pulling out the tube.
- No tools are required for connecting or disconnecting the tube.
- The tube is easily connected by pushing it into the sleeve, and can be removed by pressing the
sleeve with a finger and pulling out the tube.
- No tools are required for connecting or disconnecting the tube.

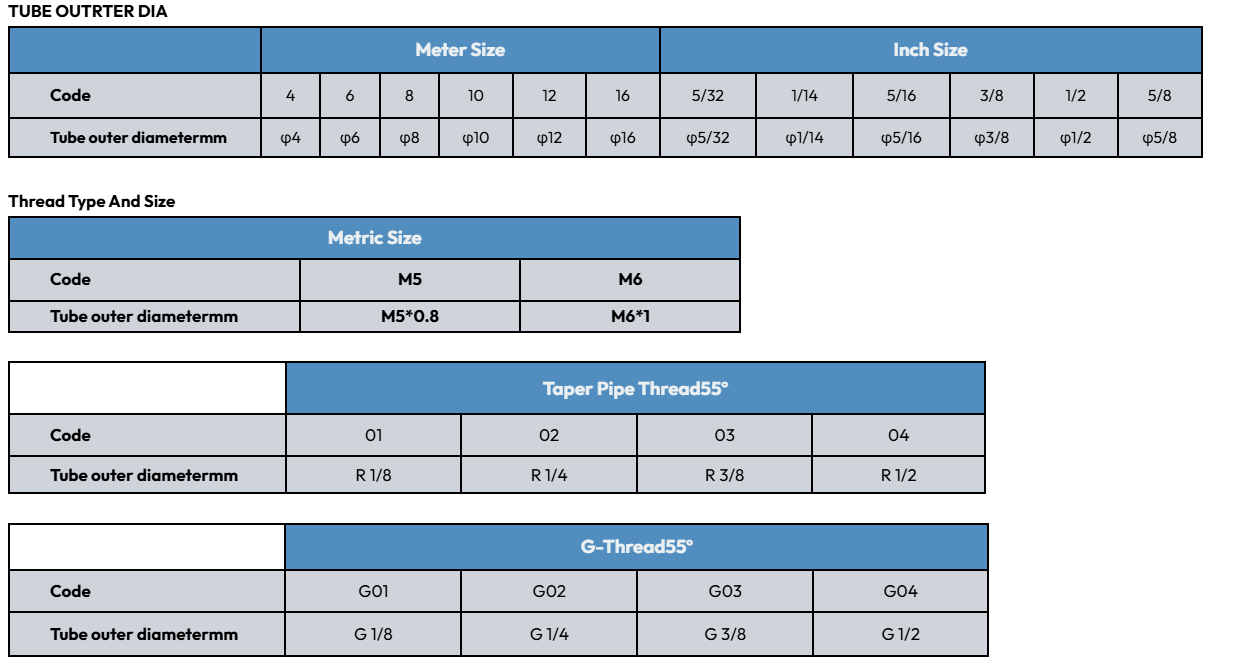

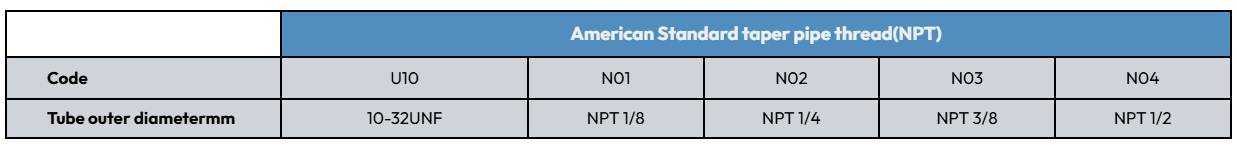

PL Code
| MODEL(φD-R) | |||||
| Tube(Metric) - Thread(PT) | Tube(Inch) - Thread(NPT) | ||||
| PL 04-M5 | PL 06-03 | PL 10-04 | PL 5/32-UNF | PL 5/16-N01 | PL 1/2-N02 |
| PL 04-M6 | PL 06-04 | PL 12-01 | PL 5/32-N01 | PL 5/16-N02 | PL 1/2-N03 |
| PL 04-01 | PL 08-01 | PL 12-02 | PL 5/32-N02 | PL 5/16-N03 | PL 1/2-N04 |
| PL 04-02 | PL 08-02 | PL 12-03 | PL 5/32-N03 | PL 5/16-N04 | PL 5/8-N02 |
| PL 04-03 | PL 08-03 | PL 12-04 | PL 1/4-UNF | PL 3/8-N01 | PL 5/8-N03 |
| PL 06-M5 | PL 08-04 | PL 16-02 | PL 1/4-N01 | PL 3/8-N02 | PL 5/8-N04 |
| PL 06-M6 | PL 10-01 | PL 16-03 | PL 1/4-N02 | PL 3/8-N03 | |
| PL 06-01 | PL 10-02 | PL 16-04 | PL 1/4-N03 | PL 3/8-N04 | |
| PL 06-02 | PL 10-03 | PL 1/4-N04 | PL 1/2-N01 | ||
