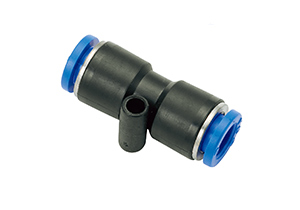

PUC
Applications and Features
- Fittings and tubes can be easily connected and disconnected in a single motion.
- The tube is easily connected by pushing it into the sleeve, and can be removed by pressing the
sleeve with a finger and pulling out the tube.
- No tools are required for connecting or disconnecting the tube.
- The tube is easily connected by pushing it into the sleeve, and can be removed by pressing the
sleeve with a finger and pulling out the tube.
- No tools are required for connecting or disconnecting the tube.

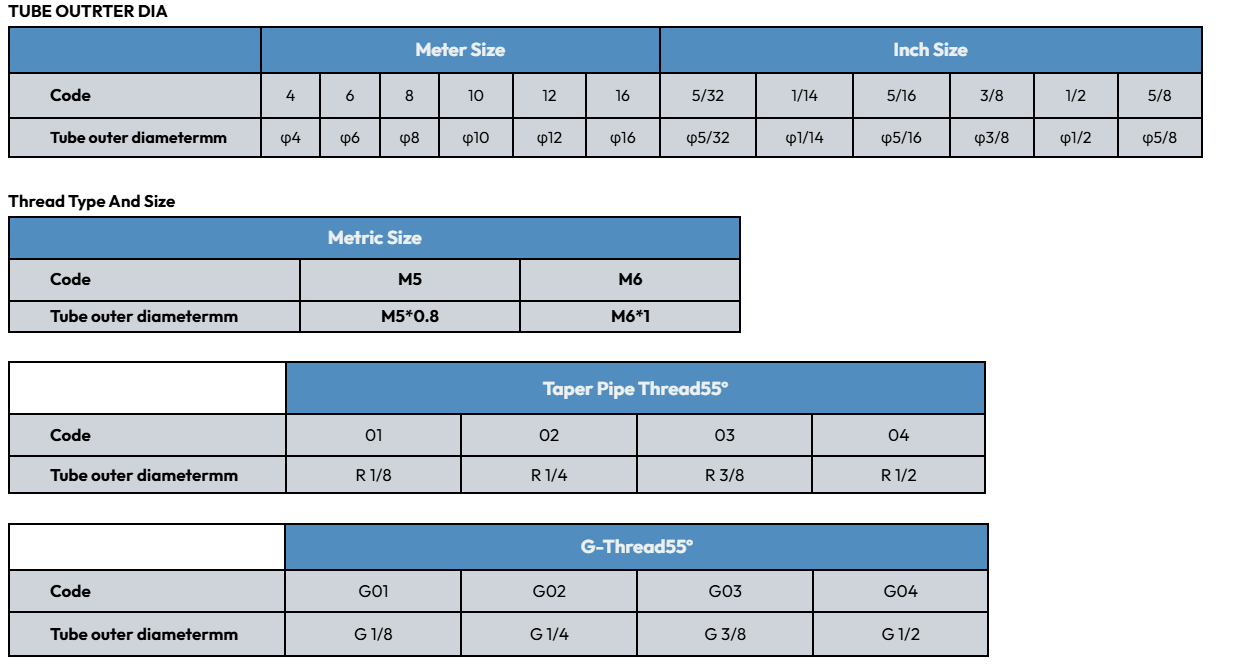

PUC Code
| MODEL(φD) | |
| Tube(Metric) | Tube(Inch) |
| PUC 04 | PUC 5/32 |
| PUC 06 | PUC 1/4 |
| PUC 08 | PUC 5/16 |
| PUC 10 | PUC 3/8 |
| PUC 12 | PUC 1/2 |
| PUC 16 | PUC 5/8 |
