PUT
Applications and Features
- Fittings and tubes can be easily connected and disconnected in a single motion.
- The tube is easily connected by pushing it into the sleeve, and can be removed by pressing the
sleeve with a finger and pulling out the tube.
- No tools are required for connecting or disconnecting the tube.
- The tube is easily connected by pushing it into the sleeve, and can be removed by pressing the
sleeve with a finger and pulling out the tube.
- No tools are required for connecting or disconnecting the tube.

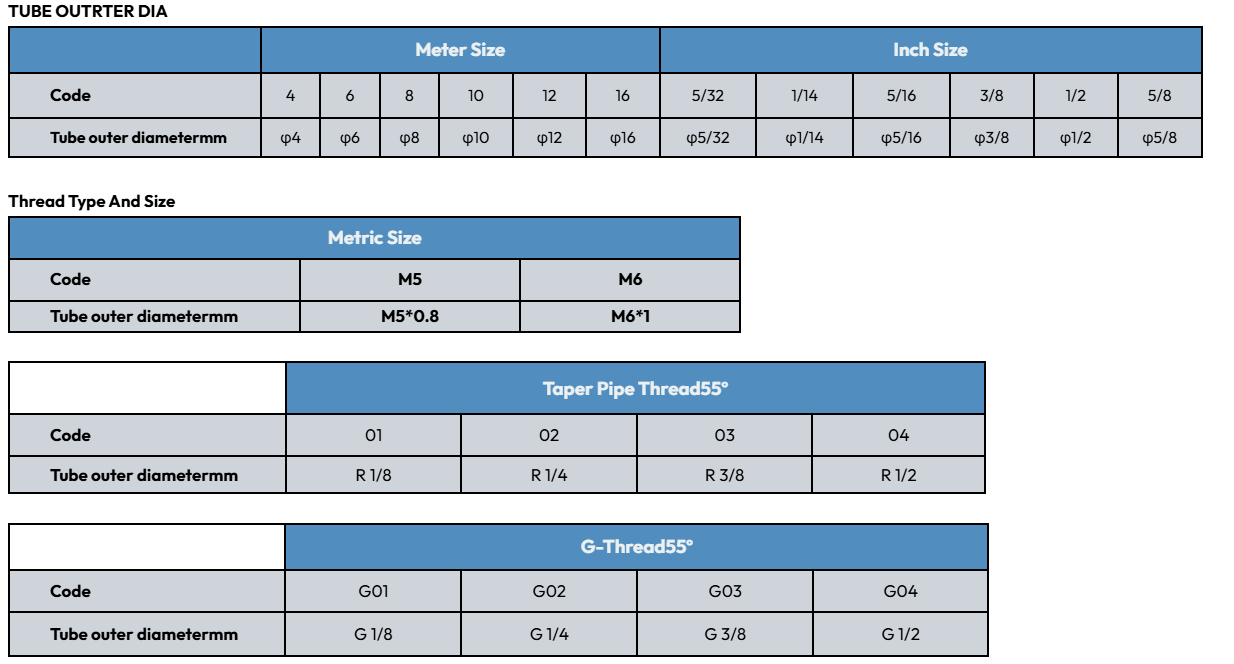

PUT Code
| MODEL(φD) | |
| Tube(Metric) | Tube(Inch) |
| PUT 04 | PUT 5/32 |
| PUT 06 | PUT 1/4 |
| PUT 08 | PUT 5/16 |
| PUT 10 | PUT 3/8 |
| PUT 12 | PUT 1/2 |
| PUT 16 | PUT 5/8 |
