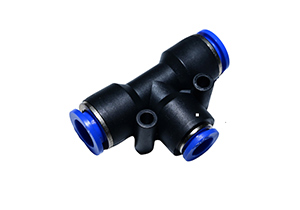

PUG
Applications and Features
- Fittings and tubes can be easily connected and disconnected in a single motion.
- The tube is easily connected by pushing it into the sleeve, and can be removed by pressing the
sleeve with a finger and pulling out the tube.
- No tools are required for connecting or disconnecting the tube.
- The tube is easily connected by pushing it into the sleeve, and can be removed by pressing the
sleeve with a finger and pulling out the tube.
- No tools are required for connecting or disconnecting the tube.

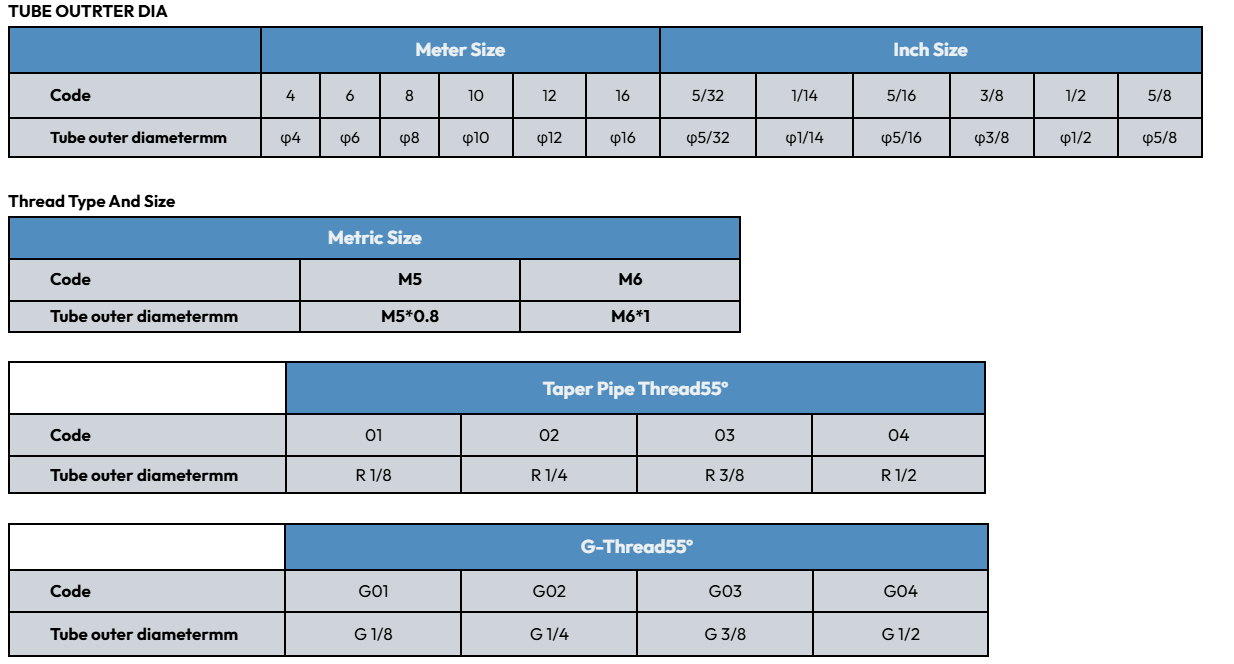

PUG Code
| MODEL(φD) | |
| Tube(Metric) | Tube(Inch) |
| PUG 06-04 | PUG 1/4-5/32 |
| PUG 08-04 | PUG 5/16-5/32 |
| PUG 08-06 | PUG 5/16-1/4 |
| PUG 10-06 |
PUG 3/8-1/4 |
| PUG 10-08 | PUG 3/8-5/16 |
| PUG 12-06 | PUG 1/2-1/4 |
| PUG 12-08 | PUG 1/2-5/16 |
| PUG 12-10 | PUG 1/2-3/8 |
| PUG 16-10 | PUG 5/8-3/8 |
| PUG 16-12 | PUG 5/8-1/2 |
